001 — First Vulkan 1.3 Render: Behind the Cube

First working render on InGa — a cube. Looks simple, but here's what's underneath.

What was implemented

• Vulkan logical device creation
• Multi-GPU role system — eGraphics and eCompute
• Swapchain: 4 images, FIFO mode, VK_FORMAT_B8G8R8A8_SRGB format
• ImageViews
• Dynamic rendering (Vulkan 1.3 — no render pass, no framebuffers)
• Full graphics pipeline
• Custom memory management — no std:: containers

Main to test it

At the current moment, the code may seem complicate and very verbose.

#include <InGa/CEngine.h>
#include <InGa/core/CWindowManager.h>
#include <InGa/core/log.h>
#include <InGa/core/allocator.h>
#include <InGa/core/containers.h>

I32 main(I32 argc, char** argv)
{
    //Configure the engine
  Inga::SContextInfo info;

  info.logInfo.logLevel  = Inga::ELogLevel::eDEBUG;
  info.logInfo.logPath   = "logs/project0.log";
  info.logInfo.logToFile = true;
  info.logInfo.logAppend = false;
  info.overridePageSize((U32)EArenaGroup::eGFX, 4, INGA_MiB(2));

  info.showMemoryStateAtExit       = true;
  info.gfxInfo.mainWindowWidth     = 1280;
  info.gfxInfo.mainWindowHeight    = 720;
#ifdef INGA_PLATFORM_LINUX
  info.gfxInfo.linuxWindowBackend  = Inga::ELinuxWindowBackend::eAuto;
#endif
  snprintf(info.gfxInfo.appName, APP_NAME_SIZE, "Project O");

    //start engine
  Inga::CEngine engine(info);
  if (!engine.isReady())
  {
    LINFO("App", "Engine Not ready");
    return -1;
  }

    //here we call the mainWindow created with engine init.
  Inga::CWindowManager& wm         = engine.getWindowManager();
  Inga::CWindow*        mainWindow = engine.getMainWindow();
  mainWindow->setClearColor(0.08f, 0.08f, 0.12f);

  // Renderer SOLID — pipeline built-in, created internaly by InGa, use for debug
  engine.setRenderer(mainWindow, Inga::ERenderer::eSolid);
  Inga::IRenderer* renderer = engine.getRenderer(mainWindow);

    //creating an orbital camera that will focus by default at 0, 0, 0
  F32 aspect = (F32)mainWindow->getWidth() / (F32)mainWindow->getHeight();
  Inga::CCameraOrbital * cam = engine.createOrbitalCamera(60.0f, aspect, 0.1f, 100.0f);
  renderer->setCamera(cam);

    //let modify a little bit the camera setup
  float pitch = 30.0f;
  float yaw = 0.0f;
  cam->setPitch(pitch);
  cam->setDistance(4.0f);
  cam->setYaw(yaw);

    // set the rederer in phong shading, to be able to see faces.
    //with solid renderer only one colore is used by mesh.
  renderer->setRenderMode(Inga::ERenderMode::ePhong);

    //solid renderer allows only one light (sun or moon)
  renderer->setPhongLightDir(Inga::Vec3(0.577f));


    // create builtin geometry box/cercle/sphere/... in this case a Box
  U32 boxId = engine.createBox();
    // loading an animated gltf. for NodeAnimations
  U32 modelId = engine.loadGltfNodeAnim("data/models/cube/AnimatedCube.gltf");
    // we take the model definition to add to ower actor(in the futur)
  const Inga::SModelDef * model = engine.getModelDef(modelId);

    //creating an Array, placeholder for actor
  Inga::Array<U32> nodeIds((U16)EArenaGroup::eGFX);
  nodeIds.resize(model->nodeCount);

    //let fill the actor
  for(U32 i = 0; i < model->nodeCount; ++i)
  {
    const Inga::SNodeDef & node = model->nodes[i];
    U32 parentId = (node.parentIdx == 0xFFFFFFFF)
                ? Inga::INVALID_NODE_ID
                : nodeIds[node.parentIdx];
    nodeIds[i] = engine.createNode(parentId);
    engine.setNodeTRS(nodeIds[i], node.localTrs);
  }

    //main loop
  while (engine.isRunning())
  {
        //tell InGa we are ready to draw something
    float dt = engine.beginFrame();

        //update all window related stuff.
    wm.update();

    if (wm.isQuitRequested())
    {
      engine.quit();
      break;
    }


    engine.updateSceneGraph();
    if (wm.beginFrame(mainWindow))
    {
      cam->computeMatrices();

        //for this window we start rendering
      renderer->begin();

            //set all node from the gltf in scenegraph
      for(U32 i = 0; i < model->nodeCount; ++i)
      {
        if(model->nodes[i].meshId == Inga::CEngine::INVALID_MESH_ID) {continue;}
        Inga::SDrawCall dc;
        dc.meshId    = model->nodes[i].meshId;
        dc.transform = engine.getWorldMatrix(nodeIds[i]);
        renderer->submit(dc);
      }

        //we draw the cube (builtin) twice
      Inga::SDrawCall dc2;
      dc2.meshId    = boxId;
      dc2.transform = Inga::translation(Inga::Vec3(-0.2f, 0.0f, -16.0f));
      dc2.color     = Inga::Vec4(0.8f, 0.8f, 0.9f, 1.0f);
      renderer->submit(dc2);

      dc2.meshId    = boxId;
      dc2.transform = Inga::translation(Inga::Vec3(0.0f, 0.0f, -8.0f));
      dc2.color     = Inga::Vec4(0.8f, 0.2f, 0.2f, 1.0f);
      renderer->submit(dc2);

      renderer->flush();

      wm.endFrame(mainWindow);
    }

    engine.endFrame();
    (void)dt;
  }

  engine.quit();
  return 0;
}

Tested on

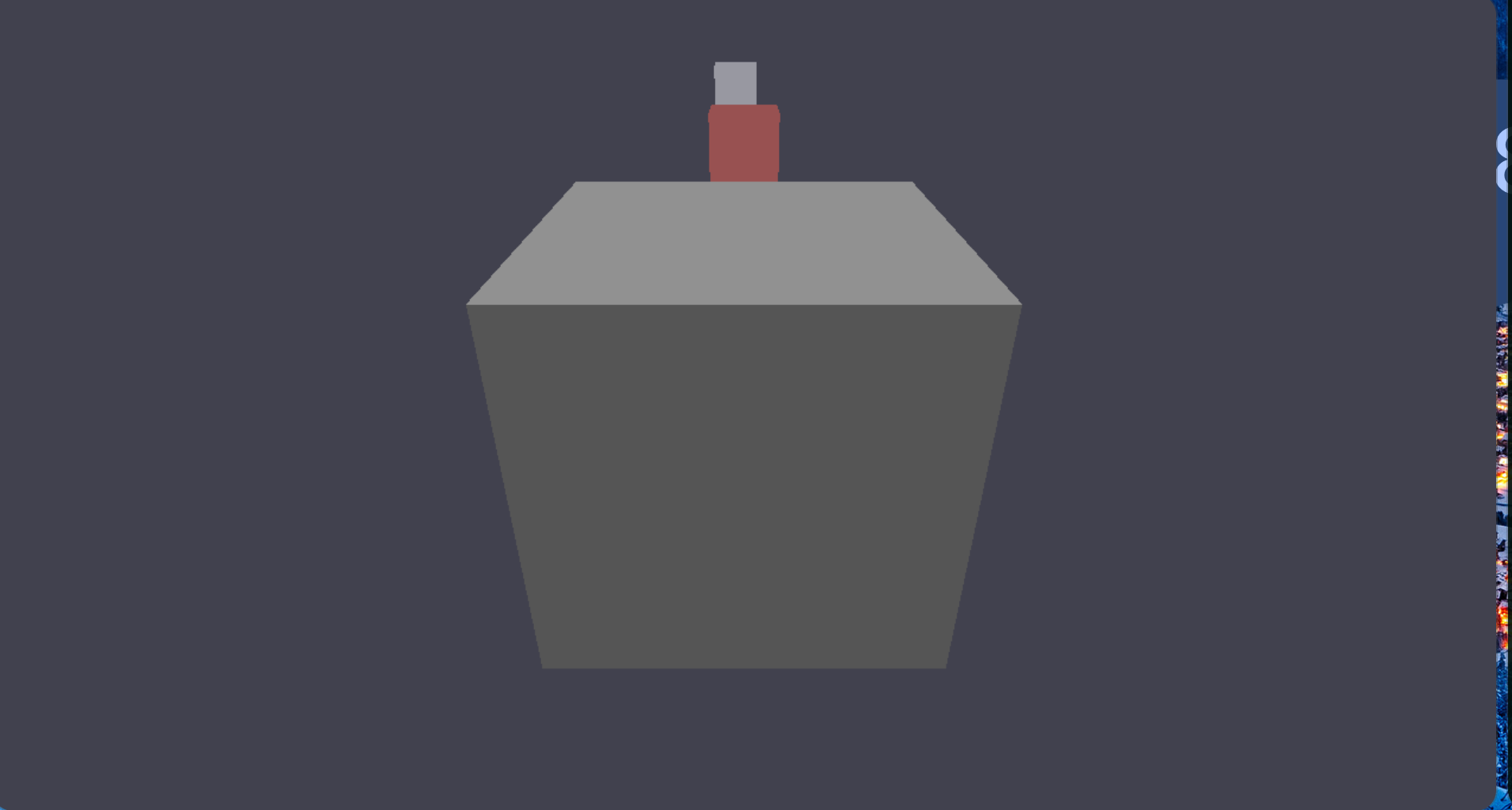

Intel ADL-N iGPU — 1280x720, confirmed working.

litte probleme

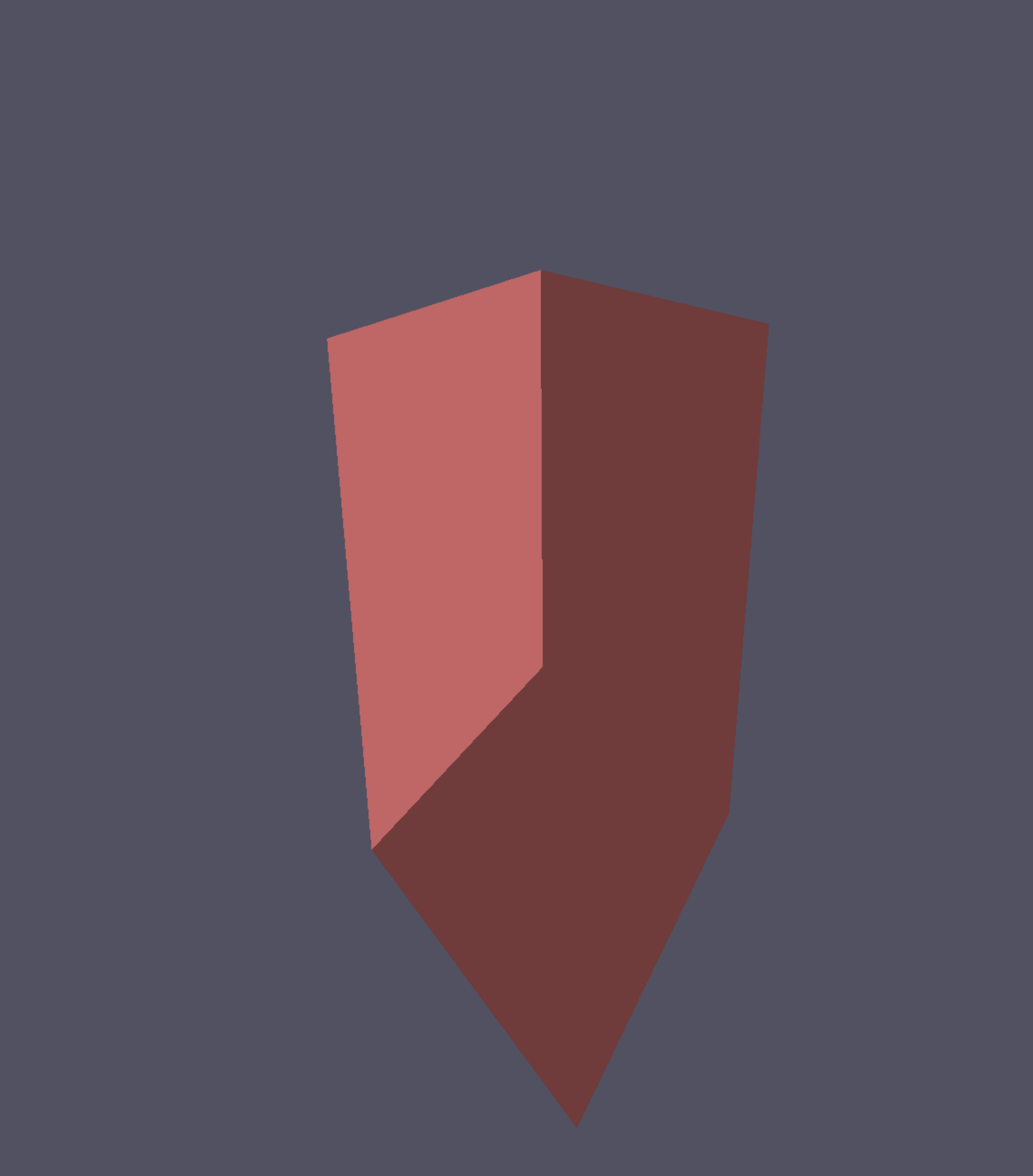

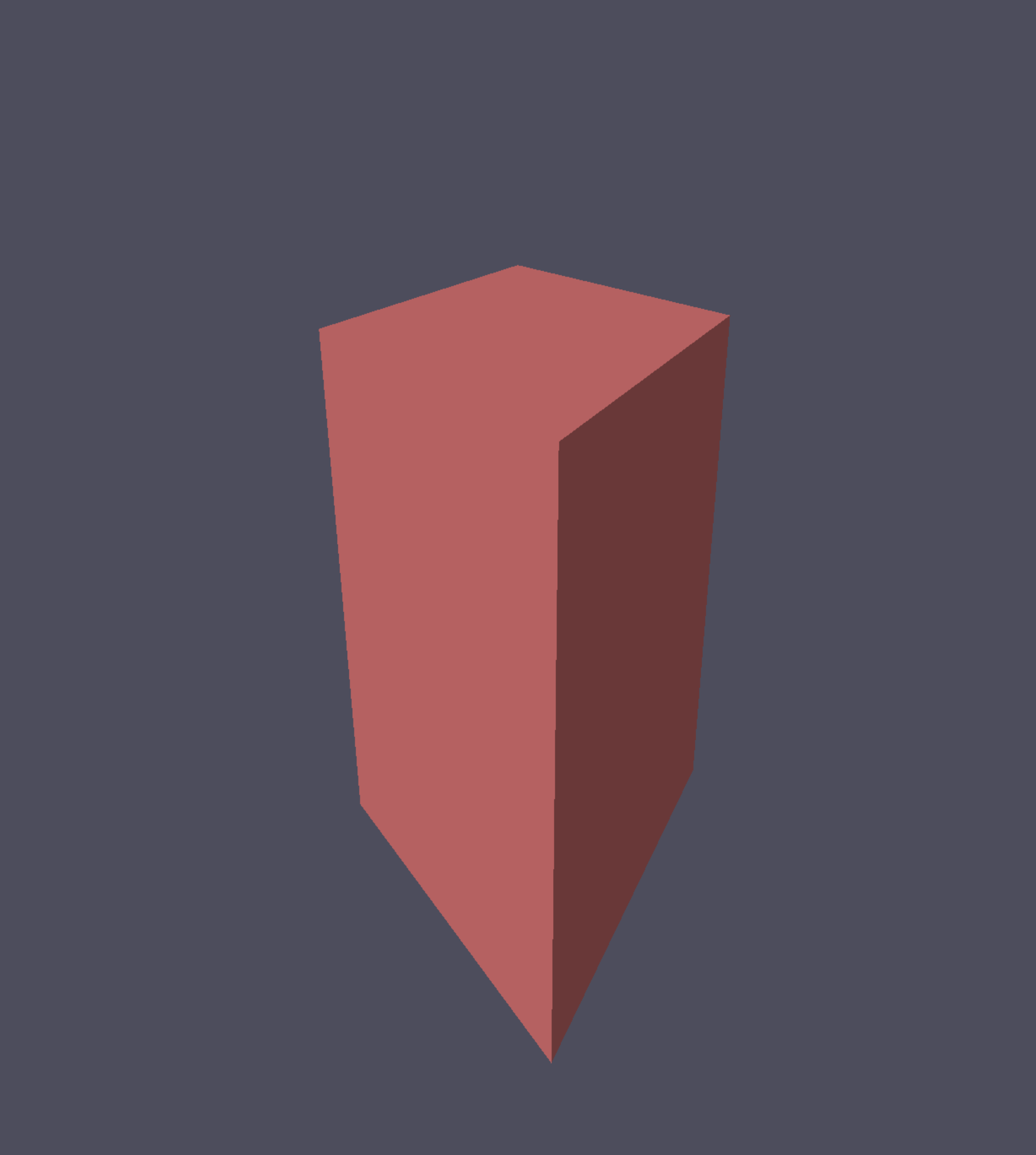

Some culling issues due tu viewport with negatif y: But by changing the culling from back to front I got The solution was change the front face from clockwise to counterClckwise

Next step

Node animation (TRS interpolation on GLTF nodes) — the Wind Waker style is coming.
